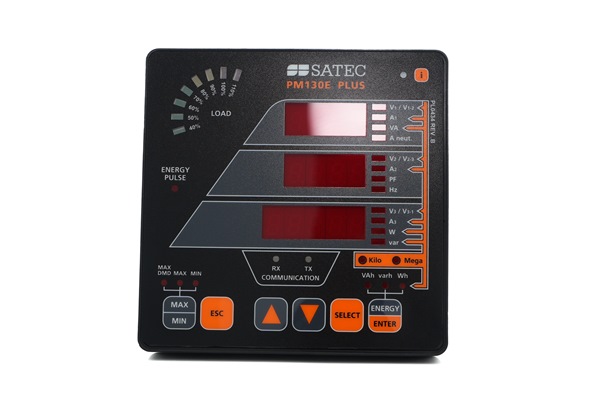

PM130 PLUS DC Compatible Multifunction Power Meter

Multi-function Power Meter

The PM130 is a multifunctional three-phase power meter.
Featuring versatile I/O options, communication ports and protocols, it is ideal for integration in utility substations or industrial SCADA systems.
A bright 7-segment LED display, accompanied by a LED load-bar, enables easy on-site access to power parameters and viewing of load percentage at a glance.

DC Metering
The PM130 allows also Direct Current (DC) metering via shunt, making it a unique meter compatible with DC applications such as renewable energy or data centers.

Accuracy: Class 0.5/0.5S per ANSI / IEC 62053-22
Communication

Built-in: RS485
Optional ports: ETH; Wi-Fi; cellular; Profibus
Open protocol: Modbus RTU; DNP3.0
IEC 60870-5-101/104

Digital & Analog I/O

up to 16 I/O

Broad-range measurement

Voltage: 15-828V AC (direct, L-L)
Frequency: 25, 50, 60, 400 Hz

DC Metering: via Shunt

Multi-option AC Current Inputs

5A or 1A
40mA for HACS CTs (100-3,000A)
Special input: clip-on 5A HACS for retrofit

LED Bar-graph: Displays load as percentage of nominal current

Accuracy

Class 0.5/0.5S accuracy per ANSI C12.20 / IEC 62053-22
Class 0.2S as optional calibration
Class 0.2 per IEC 61557-12

Power Meter

Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
Ampere/Volt demand meter
25, 50, 60 and 400 Hz measurements
Sampling frequency: 128 samples per cycle

Variable Current Inputs

Available options:

5A
1A
HACS: special 40mA inputs for SATEC’s High Accuracy Current Sensors
Shunt compatibility for DC metering
RS5: Special 5A input for 5A clip-on HACS for retrofit installation on existing MV/HV CT secondary.

Harmonic Analyzer

Voltage and current THD, TDD and K-Factor,
Voltage and current harmonic spectrum and angles, up to the 40th order harmonic

Modular I/O

Available modules:

4 Digital Inputs + 2 digital outputs (SSR or EM)
12 Digital Inputs + 4 Digital Outputs (including additional com port of choice)
8 Digital Inputs
4 Analog Outputs (for Smart Transducer application)

Programmable Logical Controller

Embedded programmable controller
16 control set points; programmable thresholds and delays
Relay output control (for alarm and protection)
1-cycle response time

Real Time Clock & TOU

Available as add-on module:

Clock and calendar functions
Time-of-Use billing and logging:
4 totalization and tariff energy/demand registers x 8 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day
2 year battery backup

Display

Easy to read 3-row (2×4 digits + 1×5 digits) bright LED display
Adjustable display brightness and update rate
Auto-scroll option with adjustable page; auto-return to a default page
LED bar-graph displaying load as percentage of nominal load current (user-definable)

Communication Interfaces

Built-in:

Standard 2-wire RS-485

Add-on Com Modules (1 per device):

Multipurpose RS-232/422/485 port
ETH 10/100Base-T
PROFIBUS
Wi-Fi module

Communication Protocols

Modbus RTU/TCP
ASCII
DNP 3.0/TCP
IEC 60870-5-101/104

Power Supply

Available options:

Auxiliary multi-purpose AC/DC power supply (85-265V AC, 88-290V DC)
Special versions (12, 24-48V DC)

Meter Security

Three-level Password security for protecting meter setups and accumulated data from unauthorized changes.

Mounting

Panel-mount:

92×92mm square
4” round cutout

Downloads

PM130 PLUS Datasheet

HACS Datasheet

Hall Effect Sensor 100S

Hall Effect Sensor 1000

Hall Effect Sensor 2000S

PM130 PLUS Quickstart

PM130 PLUS Quickstart - ESP

PM130 PLUS Manual

PM13x External CT

Tech Note - Analog Output

HEPS Module Quickstart

VRM Module Quickstart

PM130 PLUS ASCII

PM130 PLUS DNP

PM130 PLUS IEC 60870-5

PM130 PLUS Modbus

PM130 PLUS PROFIBUS

Plug-In Modules

The PM13X modular approach enables users to assemble a system that meets their specific needs.

Dimensions (HxWxD):

Small form: 2.8×1.8×1.3″ / 72×46×34 mm
Large form: 3.7×3×1.7″ / 95×77×45 mm

Second Communication port - Small Form

One of the following:

Ethernet (TCP/IP)
PROFIBUS
RS232/422/485
2G/3G/4G
Wi-Fi

Analog Outputs - Small Form

4 analog outputs
selection of range upon order:

±1mA
0-20mA
0-1mA
4-20mA
0-5mA
±5mA

6 Digital I/O - Small Form

4 Digital Inputs (Dry Contact) + 2 Relay Outputs 250V / 5A AC
4 Digital Inputs (Dry Contact) + 2 SSR Outputs 250V / 0.1A AC
4 Digital Inputs (Dry contact) with RTC battery backup for TOU

8 Digital Inputs

8 Dry Contacts, internally wetted @ 24V DC

16 Digital I/O - Large Form

12 Digital Inputs (Dry Contact or 250VDC)
4 Relay Outputs 250V/5A AC
Optional selection of additional ETH, RS-485 or Profibus com port in module

PM130P PLUS

The basic model, providing standard voltage, current, power & frequency measurements and control capabilities.

PM130E PLUS

Offers all the features above, as well as energy measurements and data logging (available in certain regions only).

PM130EH PLUS

Offers all the features of the PM130E model, including individual harmonics analysis up the 40^th order harmonic.
