PAS

Power Analysis Software

PAS is SATEC’s comprehensive analysis and engineering software, designed to configure and monitor all SATEC devices.
It includes a variety of tools for assisting system setup, such as a communication debugging module.
PAS is bundled with all SATEC instruments at no extra charge.

Programming and control of all SATEC devices:

Settings / configuration
Programming: setpoints/ triggers, communications and memory allocation for data logging

Device Polling and Data retrieving:

Real Time data polling
Retrieving all stored data

Generating Power Quality reports:

EN50160
IEEE 1159
IEEE 519-2022

Graphic Analytical Tools:

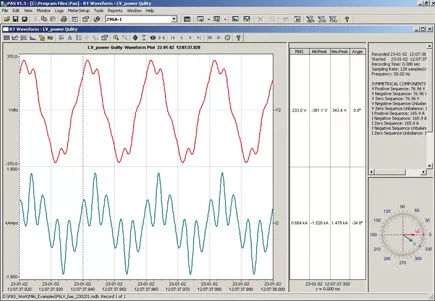

Waveforms
Harmonic spectrum
Vector analysis / phasor diagram
ITI (CBEMA) curve
Displaying data logs as trends

Export data to Excel/CSV or MDB file

Export to PQDIF/COMTRADE format

Capabilities

Power quality reports for EN50160 & IEEE 1159
Automatic polling of devices
Device setup and configuration
Self-test
File export:
- Data logs / trend logs to XLS, CSV or MDB
- Waveform capture to COMTRADE (IEEE standard common format for transient data exchange) and PQDIF
Wide range of communication interfaces:
- Serial connection
- Modbus TCP/IP
- USB

Advanced Analysis

Data logs—historical or current
Trend based on user-selected parameters
Harmonic spectrum
Harmonics power direction
Extensive graphic and report capabilities for waveforms, harmonics & billing
EN50160 comparison tables for HV and LV applications
G5/4 comparison tables for HV and LV applications
Vector analysis/phasor diagram
Automatic power quality and fault categorization
Waveform comparison between sites
ITI (CBEMA) curve
Delta measurement
